185mm 7-in-1 Wire Stripper Pliers for 10-22 AWG Cables
| Place of Origin | People's Republic of China |
|---|---|
| Brand Name | WANJOIN |
| Certification | DIN, ANSI |
| Model Number | PA083005A |
| Minimum Order Quantity | 2000 |
| Price | Negotiated |
| Packaging Details | tie on card, double blister, sandwich |
| Delivery Time | 60days |
| Payment Terms | T/T |
| Supply Ability | 30000pc/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 185mm wire stripper pliers,7-in-1 cable stripper tool,10-22 AWG combination pliers |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description

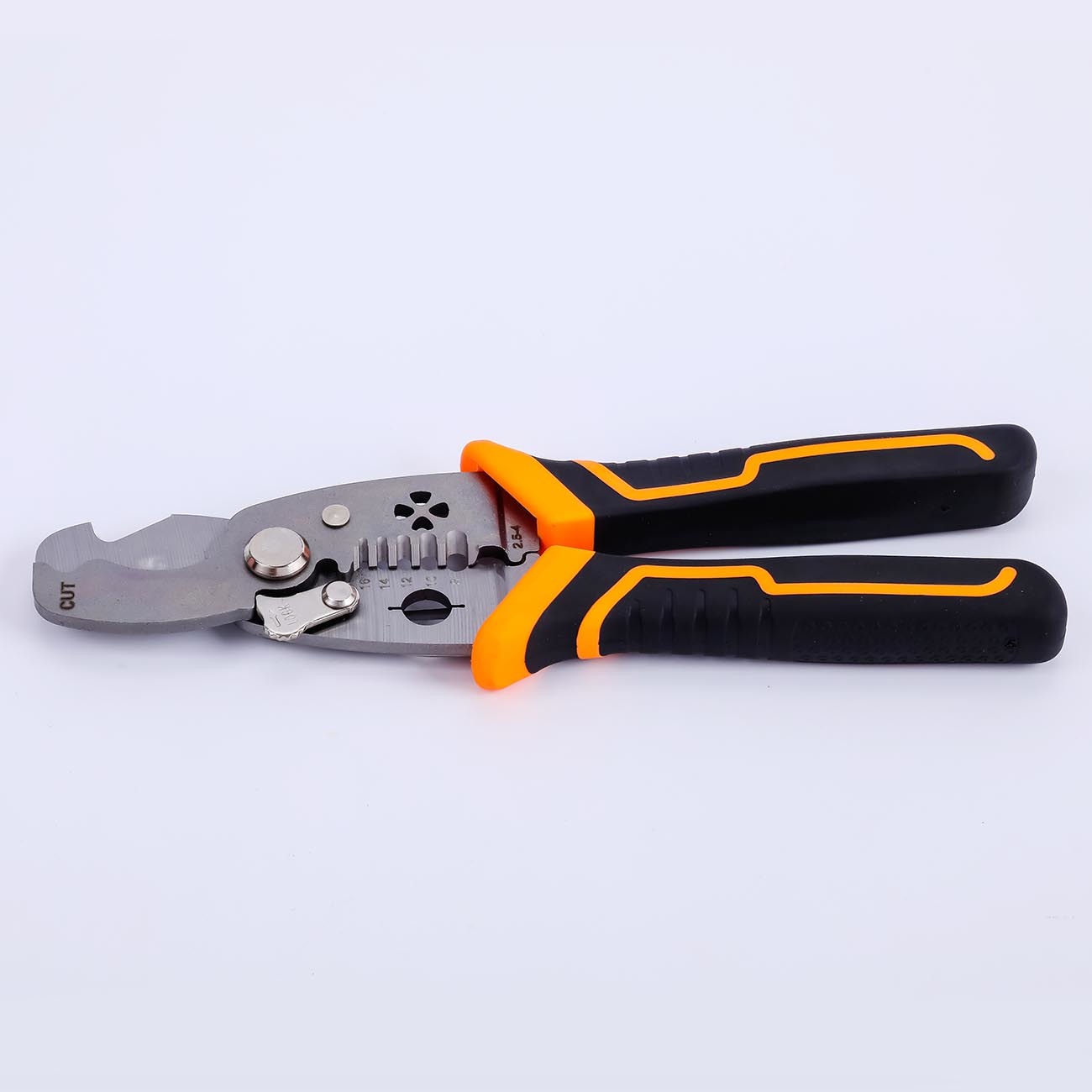

185mm 7-in-1 Cable Quick Wire Stripper Multi function Cutting Pliers & Hand Tool
Product Overview
The 185mm 7-in-1 Multifunction Cable Wire Stripper is a professional-grade tool that combines seven essential wiring functions into one compact, ergonomic device. Designed for electricians, network installers, and DIY enthusiasts, this tool eliminates the need for multiple tools while delivering precision performance.
Key Specifications
- Size: 190 × 50 × 10mm
- Material: 4Cr13 stainless steel with sandblasting treatment
- Handle Material: TPR dual color
- Safety lock buckle included
- Laser logo + print logo on handle
7-in-1 Multifunctional Mastery

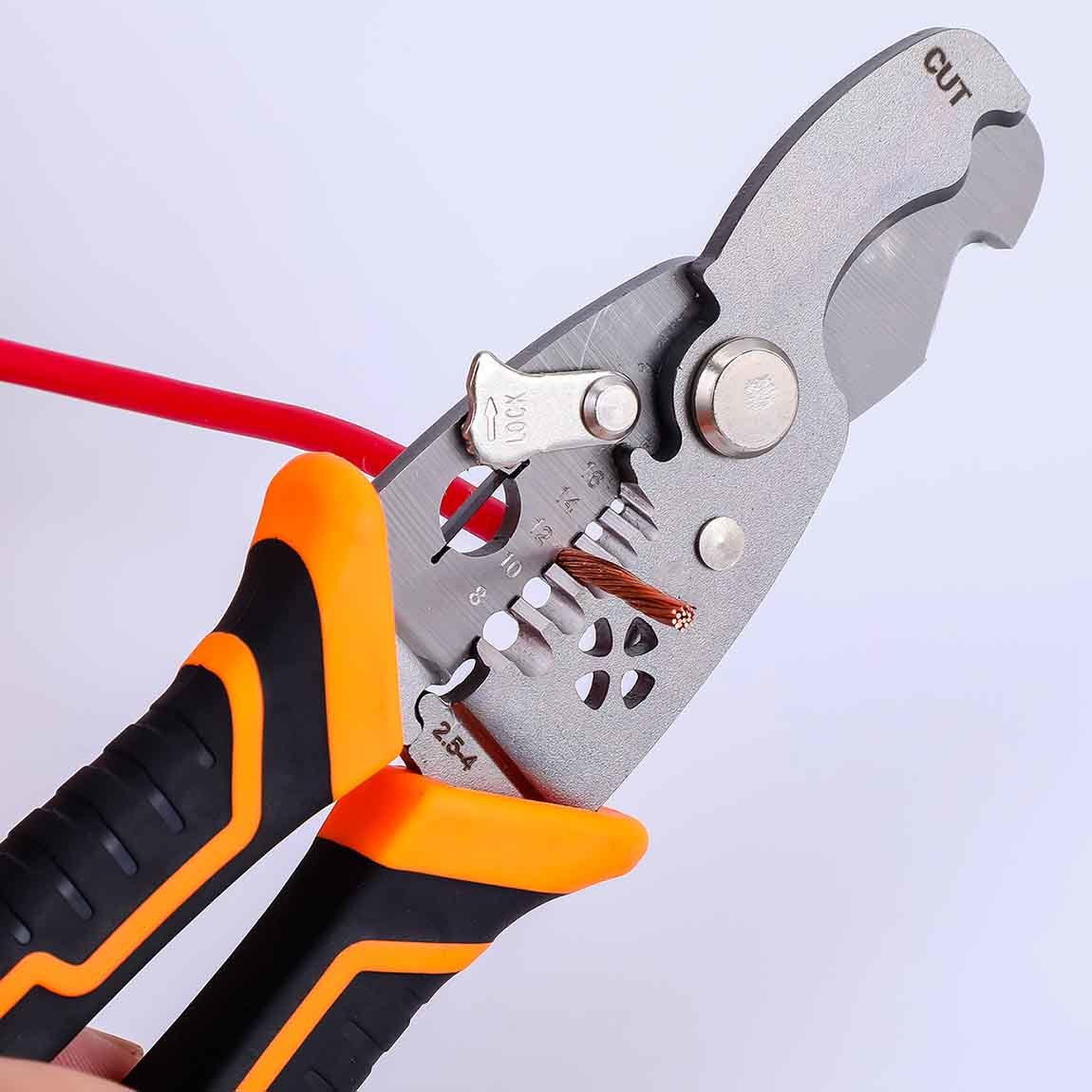

- Quick-Adjust Wire Stripper: Easily strips 10-22 AWG wires with precision depth control

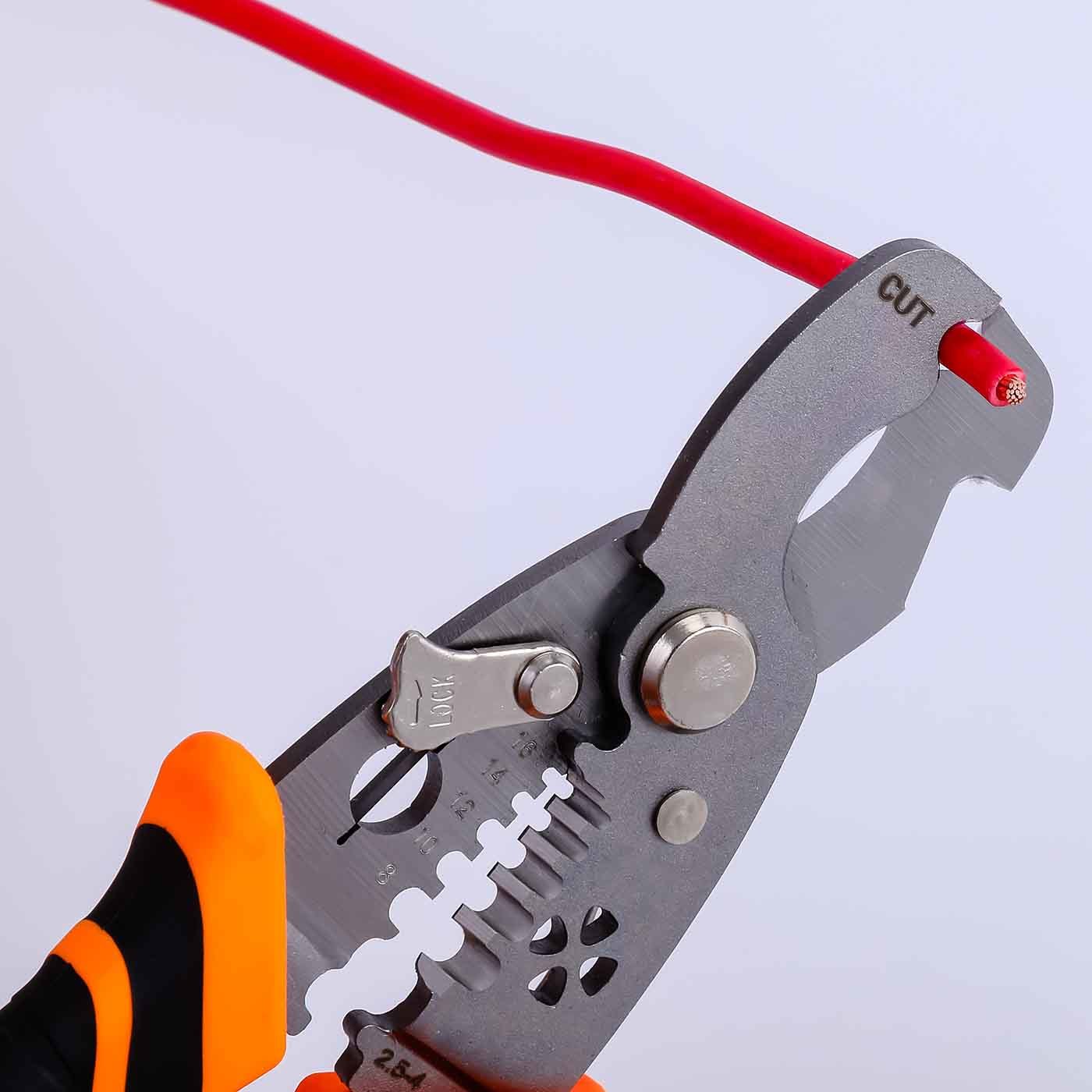

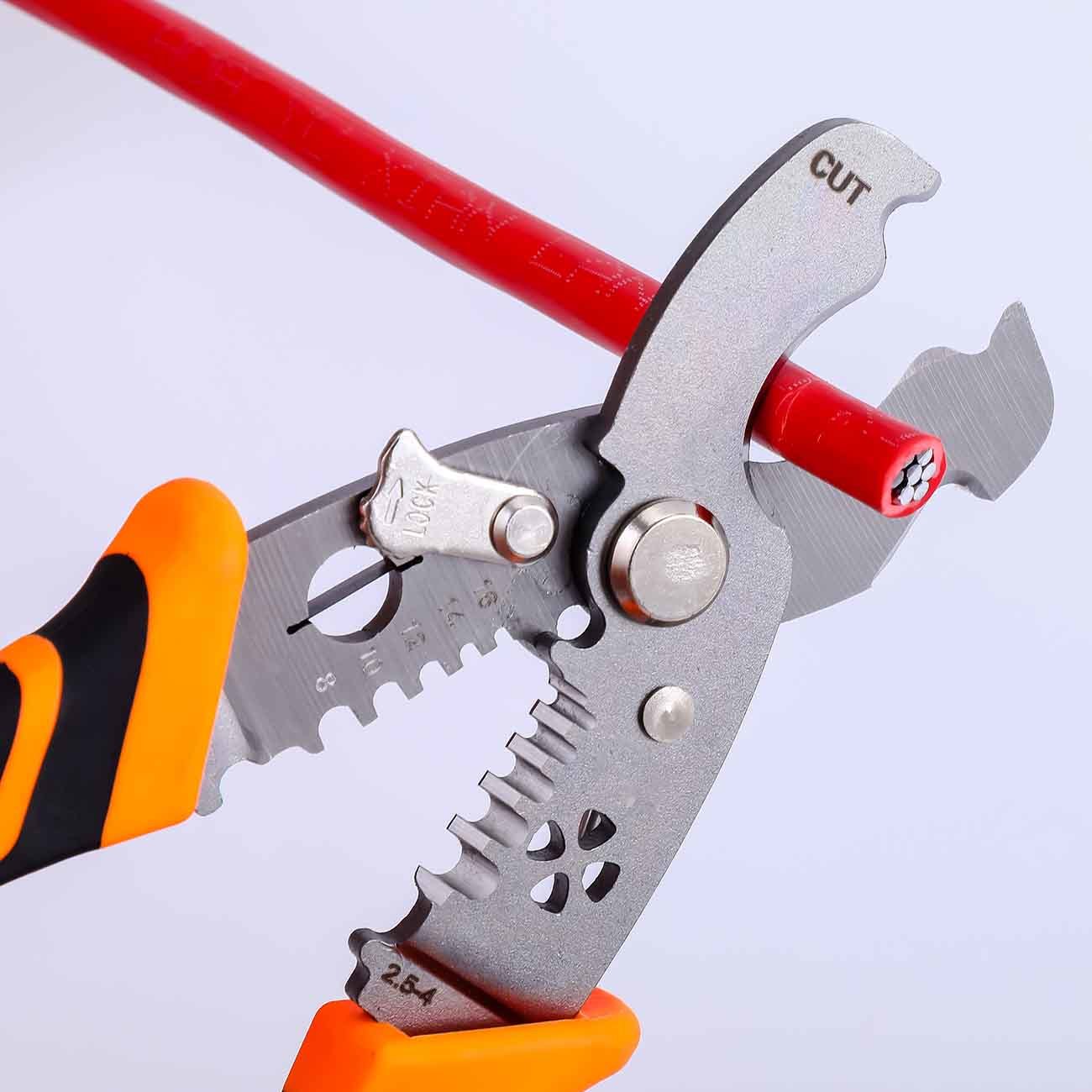

- High-Leverage Cable Cutter: Cleanly shears through soft and hard wire, cables, and small bolts

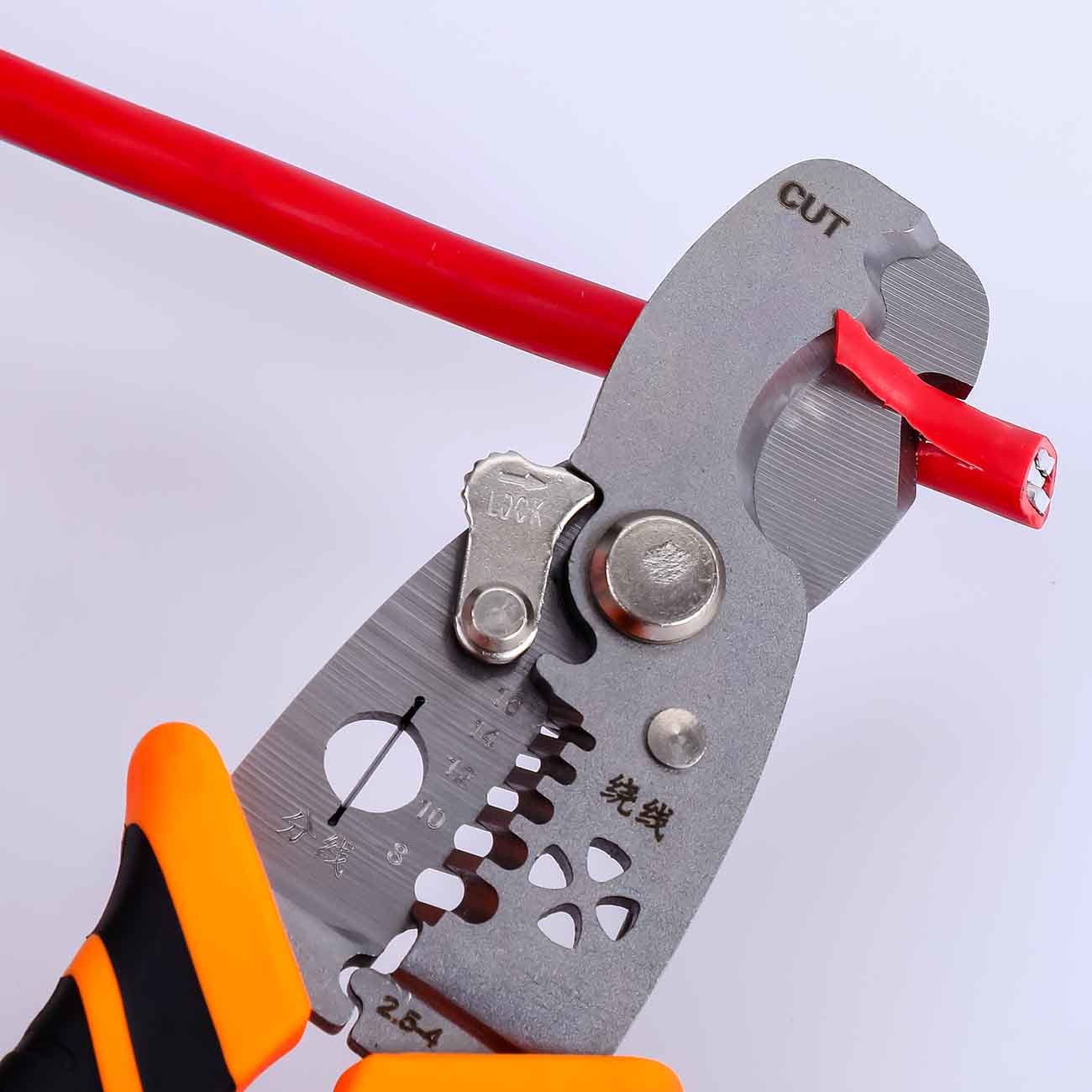

- Cable Sheath Splitter: Safely scores and splits outer cable insulation without damaging internal wires
- Wire Loop Winder: Creates perfect wire loops around terminal screws

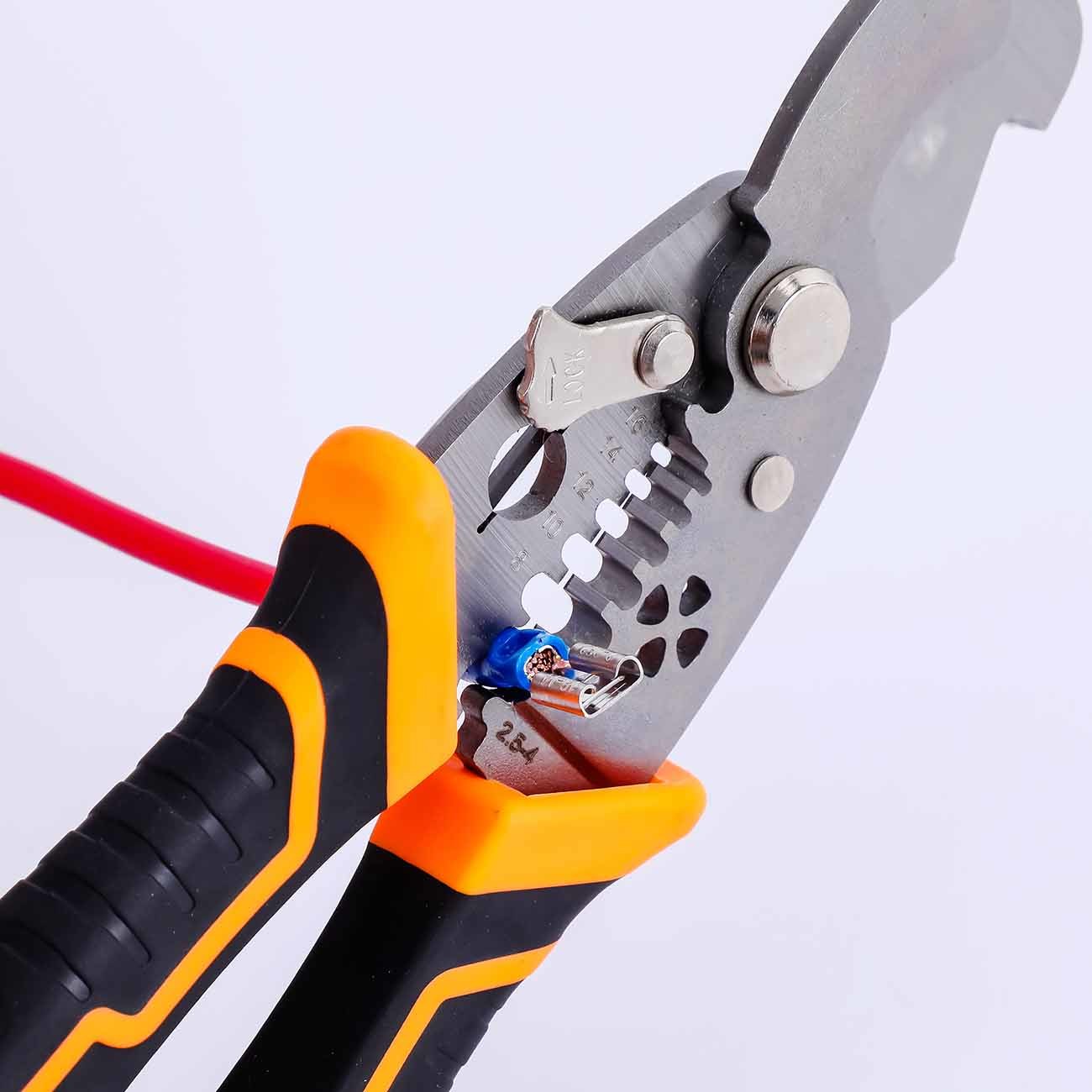

- Hex Nut Crimper: Securely crimps insulated and non-insulated terminals
- Needle-Nose Gripper: Tapered jaws for gripping, bending, and reaching tight spaces
- Scissors Function: Cuts cable ties and other materials
Technical Specifications
| Feature | Specification |
|---|---|
| Model Type | 7-in-1 Multifunction Wire Stripping Pliers |
| Overall Length | 185 mm (7.3 Inches) |
| Head Material | Chrome Vanadium Steel (Cr-V) |
| Stripping Range | AWG 10, 12, 14, 16, 18, 20, 22 |
| Functions | Strip, Cut, Wind, Split, Shear, Crimp, Grip |
| Handle | Ergonomic Soft-Grip, Non-Slip |
| Finish | Anti-Corrosion Electroplating |
Frequently Asked Questions
Q: What types of cable can the sheath splitter handle?
A: The splitting blade is designed for standard round electrical cables (2.5-6mm diameter) and network cables like Cat5/6. It scores the outer jacket for easy removal without harming the delicate inner wires.
Q: Are the handles electrically insulated?
A: The comfort-grip handles provide protection but are not certified as VDE insulated for live electrical work. Always de-energize circuits before working on them.
Q: How does the wire winding function work?
A: A small, hooked post in the jaw lets you place the wire tip under the terminal screw, hook the wire around the post, and rotate the tool to create perfect, consistent loops.
Q: Is the crimper suitable for all types of connectors?
A: It works with common insulated and non-insulated crimp terminals (ring, spade). For specialized connectors (RJ45, coaxial), dedicated crimping tools are recommended.
